Introducing the Swimming System in V2.0 – Expanding Gameplay Below the Surface

Version 2.0 of the Modular Third-Person Framework introduces one of the most anticipated mechanics: a fully modular Swimming System. Designed with smooth transitions, camera-driven movement, and full integration with stamina and breath mechanics, this system extends gameplay into water environments with minimal setup.

🌊 Seamless Transitions In & Out of Water. Swimming is not an isolated state — it’s part of the unified movement architecture.

1. Entry: PlayerEnterSwimState detects submersion ratio (via SwimConfig) and switches to swimming when the player is sufficiently underwater.
2. Exit: PlayerExitSwimState allows climbing out via ledges, shorelines, or climbable objects.
3. Integration: All states inherit from PlayerMovementBaseState (which implements IPlayerState), ensuring consistent transitions across climbing, parkour, and swimming.

 How could you extend this system to support stealth or underwater combat mechanics?

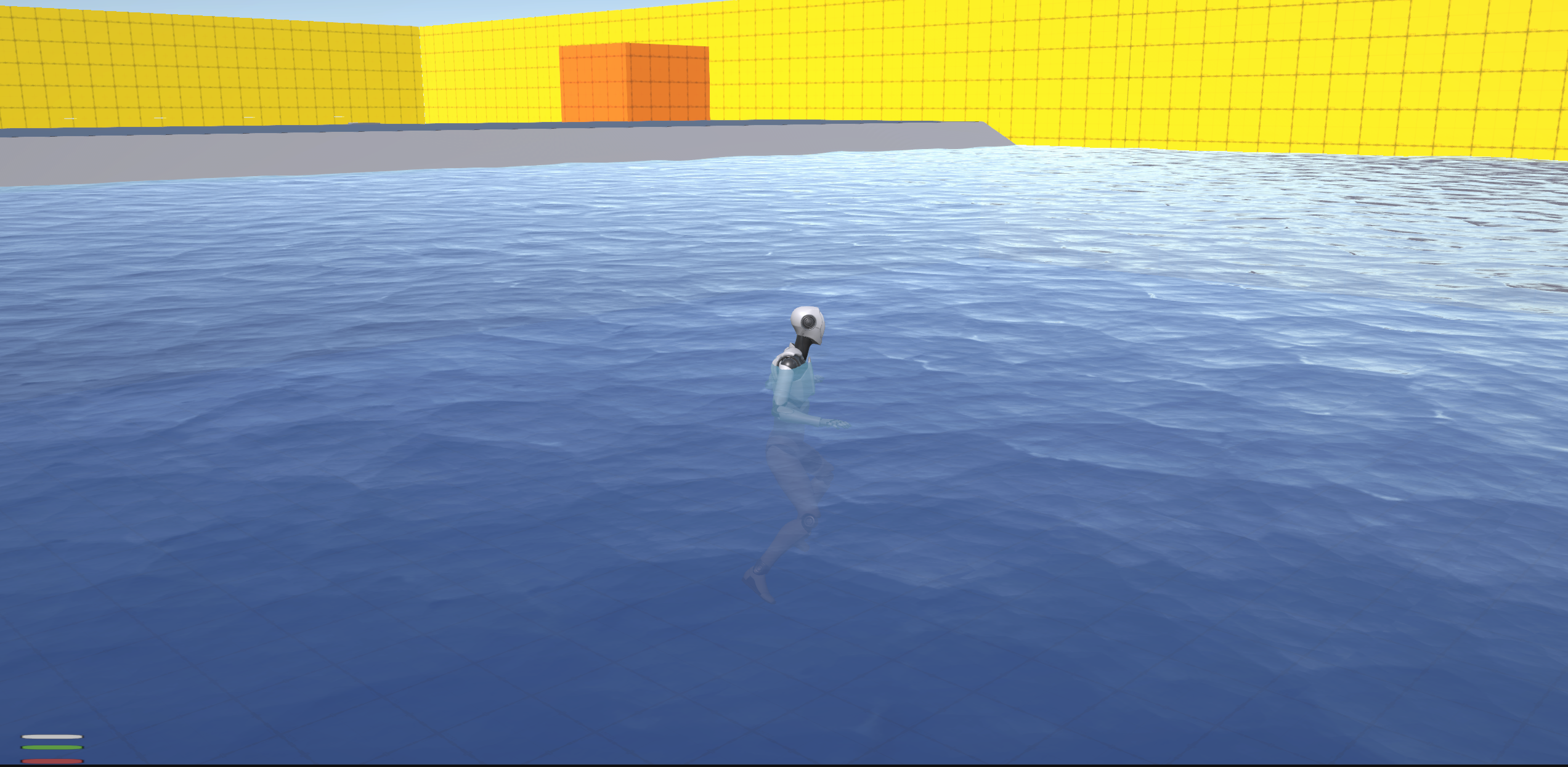

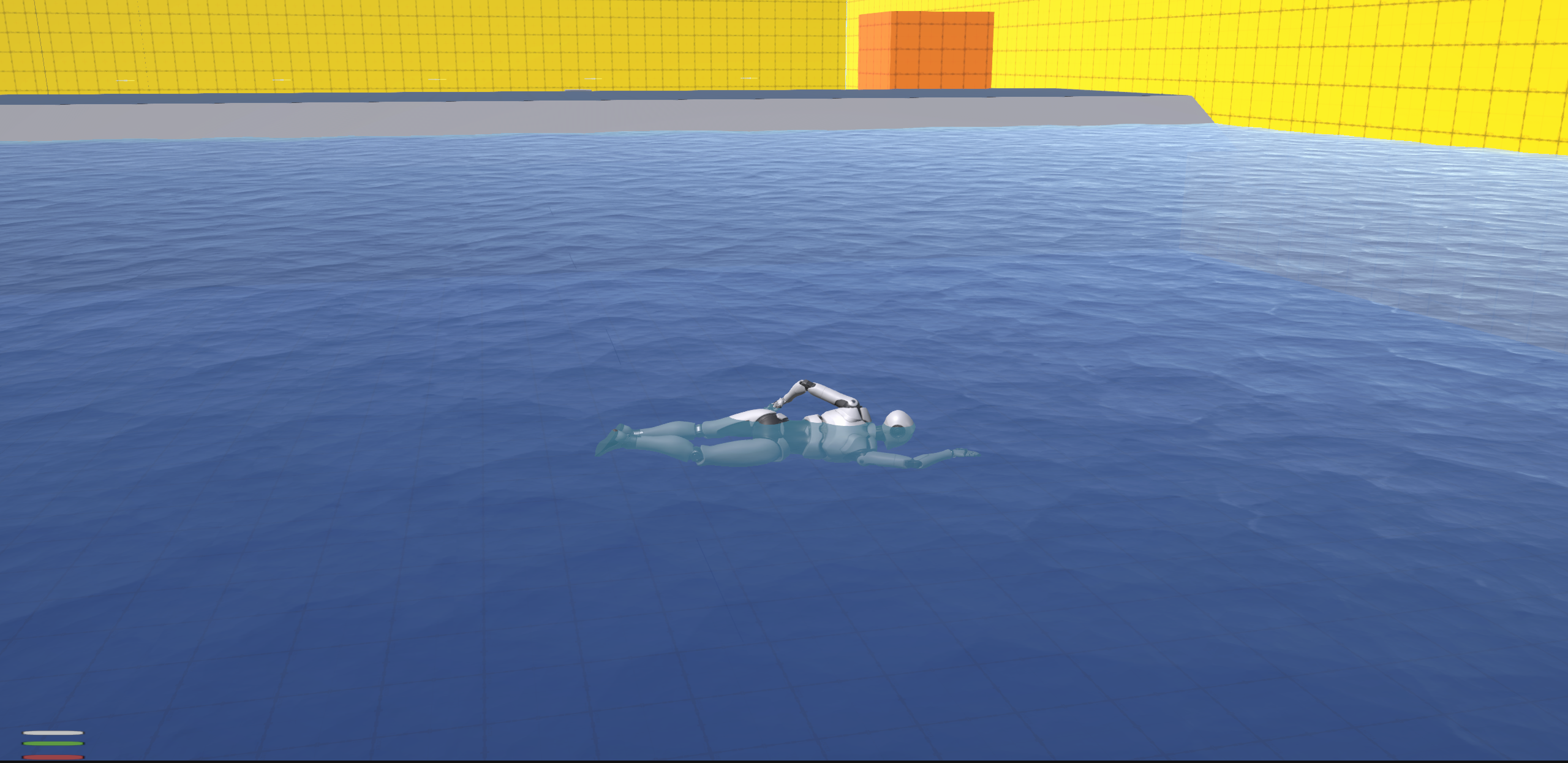

🎥 Natural Camera-Driven SwimmingMovement follows the camera, not rigid input directions.

• PlayerSwimState calculates buoyancy using water surface Y, bottom Y, player height, and submersion values.
• Motion feels fluid whether floating, diving briefly, or treading water.
• Rotation math ensures stability and prevents jitter during real-time orientation adjustments.

💨 Stamina & Breath IntegrationSwimming ties directly into gameplay systems:

• Stamina: Configurable in StaminaConfig. Normal swimming drains stamina slowly; fast swimming increases the drain.
• Breath: Managed by the standalone Breath System. Surfacing regenerates breath automatically. Tunable via BreathConfig.
• Events: Changes broadcast via delegates for easy UI binding.

 Which survival mechanics could benefit from this stamina-breath integration?

🌐 Water Volume DetectionSetup is simple:

• Add the WaterVolume script (Interaction layer) to your water object.
• The collider defines boundaries; depth is auto-calculated for submersion detection.
• No glue code needed — the system ties directly into the movement state machine.

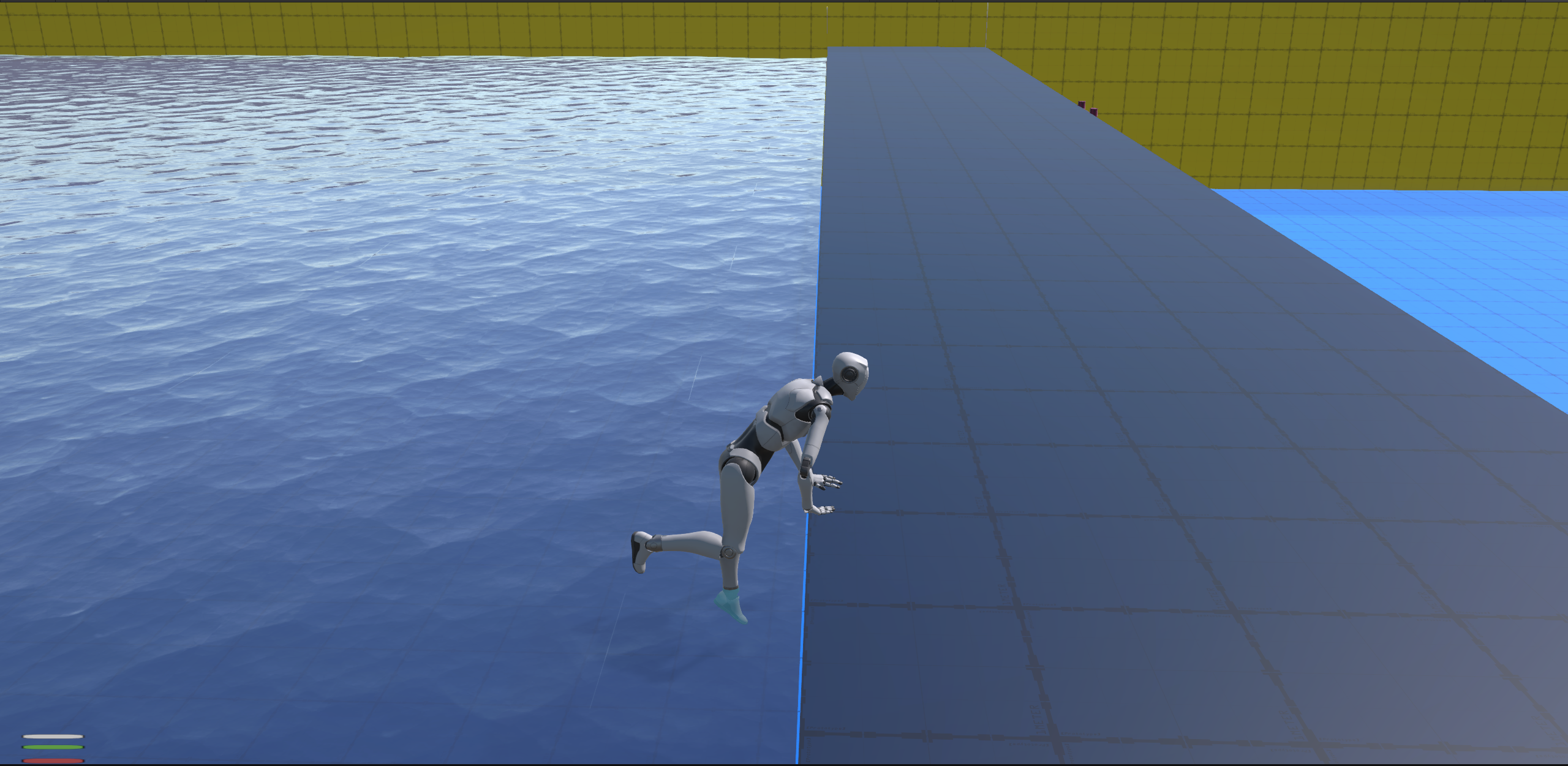

🧗‍♂️ LedgeObject – Smooth Swim ExitsSwimming exits are polished using the LedgeObject:

• Attach a LedgeObject to exit points.
• The system aligns the player’s position to the ledge, preventing awkward clipping or drifting.
• Shared across climbing and swimming for consistent exit behavior.

⚙️ Config Spotlight – SwimConfigFine-tune swimming via the SwimConfig ScriptableObject:

• Swim speed and acceleration
• Buoyancy strength and thresholds
• Timeouts for entering/exiting swim states
• All parameters are runtime-editable for rapid iteration

🧠 Architecture Overview

• MonoBehaviour: PlayerCoreOrchestrator – orchestrates logic for all states
• States: PlayerEnterSwimState, PlayerSwimState, PlayerExitSwimState
• Interaction Components: WaterVolume, LedgeObject
• Configs: SwimConfig, StaminaConfig, BreathConfig

✅ Quick Setup Checklist

• Attach a WaterVolume collider to your water object
• Place LedgeObject components at swim exits
• Create and configure a SwimConfig asset
• Wire stamina and breath systems (optional but recommended)
• Test entry, exit, and buoyancy thresholds in play mode
• Adjust Animator blend times to match swim clips

🎞️ Notes on Animations The framework is code-only. Developers should:

• Import production-ready swim animations
• Map clips in the Animator (recommended: sub-state machine for Swimming)
• Sync timeouts with Animator clip lengths for smooth transitions

🧩 Final Notes The Swimming System in V2.0 expands the Modular Third-Person Framework into water environments with seamless integration. With camera-driven movement, ScriptableObject-based configs, cross-system compatibility (stamina, breath, parkour, climb), and polished LedgeObject exits, swimming becomes a plug-and-play mechanic that feels both natural and production-ready.
