Mastering the Breath System in V2.0 – Oxygen Management Made Easy

Version 2.0 of the Modular Third-Person Framework introduces a fully modular Breath System — designed to integrate seamlessly with swimming and diving mechanics. Whether you're building survival gameplay, stealth missions, or underwater exploration, this system gives you a plug-and-play solution for managing oxygen with minimal setup and maximum control.

🔗 Breath Integration Across Movement StatesThe Breath System is tightly coupled with movement states — no extra wiring needed.

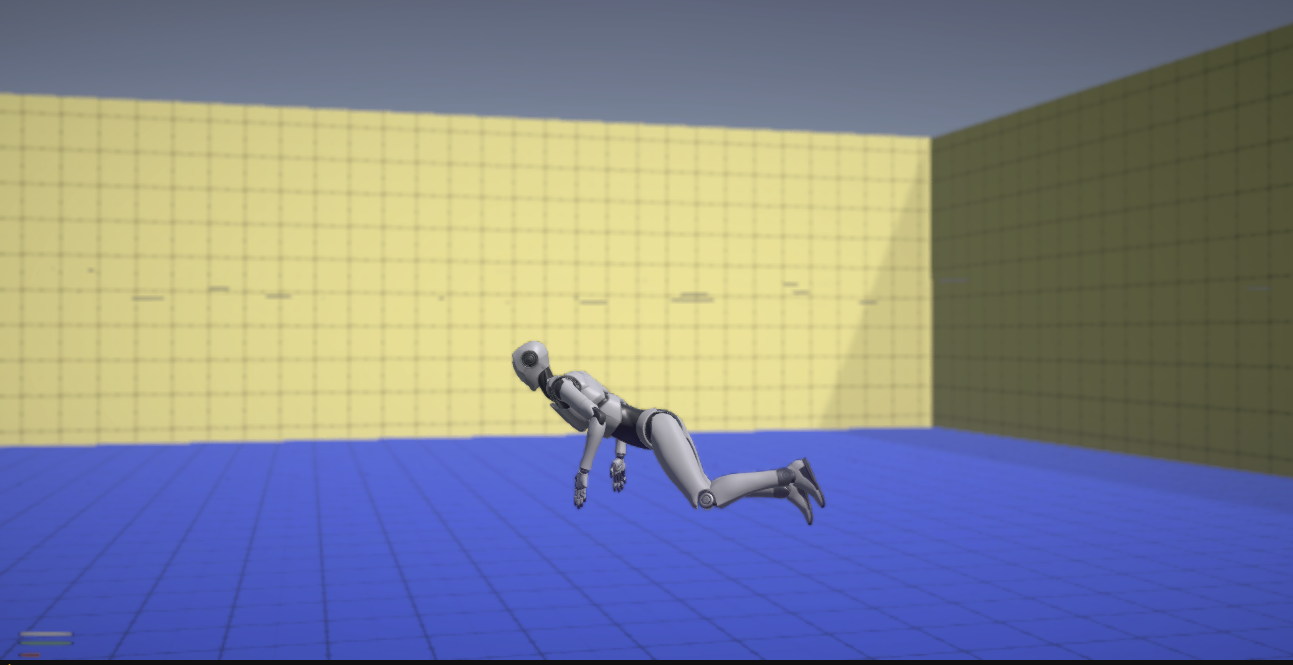

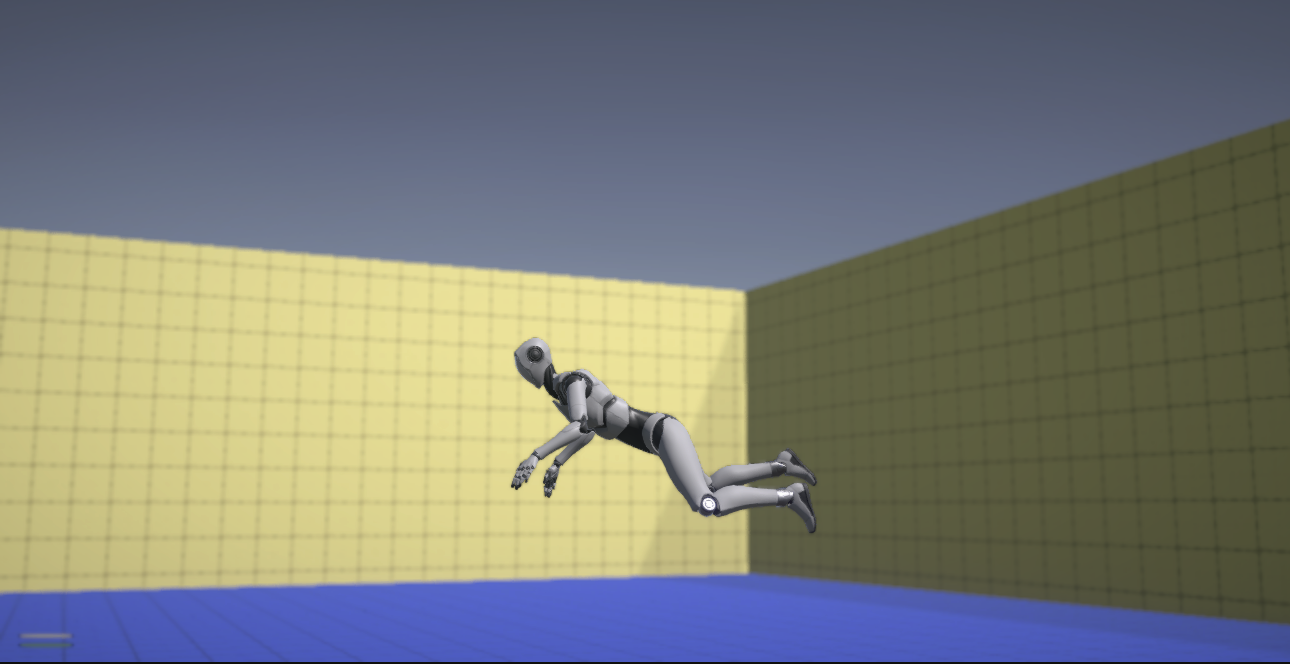

• Swimming & Diving: Breath decreases naturally while underwater.
• Recovery: Surfacing or exiting breath-consuming states restores oxygen based on configurable rules.
• Inheritance: Implemented in PlayerBreath, which inherits from BreathBaseSystem, ensuring consistency with stamina and health systems.

 Need underwater survival mechanics? This system is already wired and ready to go.

⚙️ Configurable Breath BehaviorControl every aspect of oxygen management using the BreathConfig ScriptableObject:

• Max Breath – total oxygen capacity
• Recharge Timeout – delay before breath starts regenerating
• Recovery Rate – how quickly oxygen refills
• Deplete Timeout – delay before breath starts draining
• Drain Rate – how fast oxygen is consumed

 All values are editable at runtime, making iteration fast and flexible.Want to tweak gameplay without touching code? Just adjust the config.

📡 Event-Driven Oxygen TrackingThe system uses delegates to broadcast breath changes:

• OnBreathChanged – updates UI elements like oxygen bars

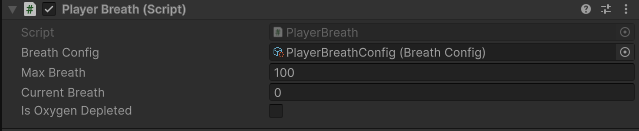

• OnOxygenOut – triggers gameplay consequences (e.g., health drain)

 No need to write custom logic — just subscribe to the events.

🖥️ UI Integration – Clear Feedback for PlayersBuilt-in support for real-time UI updates ensures players always know their oxygen status.

• PlayerBreathUI: Implements IPlayerUI and extends PlayerUIBaseSystem
• Dynamic Updates: Breath changes auto-update the UI image fill amount
• Show/Hide Controls: Toggle UI visibility based on underwater states
• Custom Hooks: Use OnUIShown and OnUIHidden to trigger sounds, animations, or effects

 Give players clarity without building a custom UI system.

🧠 Architecture Overview

• MonoBehaviour: PlayerCoreOrchestrator – centralizes logic

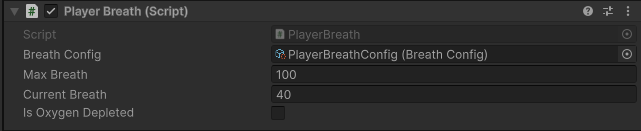

• Breath System Script: PlayerBreath – manages oxygen logic
• Base Class: BreathBaseSystem – shared logic across entities
• Configuration: BreathConfig – ScriptableObject for tuning
• UI: PlayerBreathUI – connects breath logic to the HUD

✅ Quick Setup Checklist

• Create a BreathConfig asset and assign values
• Attach PlayerBreath to the player (already wired via orchestrator)
• Add PlayerBreathUI and link a UI Image (oxygen bar)
• Bind breath events (OnBreathChanged, OnOxygenOut) to feedback
• Test underwater scenarios to balance drain/recovery timings

🎞️ Notes on AnimationsAs with all systems in the framework, the Breath System is code-only. Developers should:

• Add visual feedback for drowning or breath recovery
• Sync animator transitions with state timeouts for smooth feedback

🧩 Final NotesThe Breath System in V2.0 gives developers a flexible, event-driven way to simulate oxygen. With ScriptableObject-driven parameters, seamless integration with movement states, and built-in UI support, it’s a lightweight but powerful addition to immersive gameplay.Need breath mechanics for stealth, survival, or underwater levels? This system saves hours of setup and scales with your project.
